100 - 800 TPHCapacity
Precision Screening

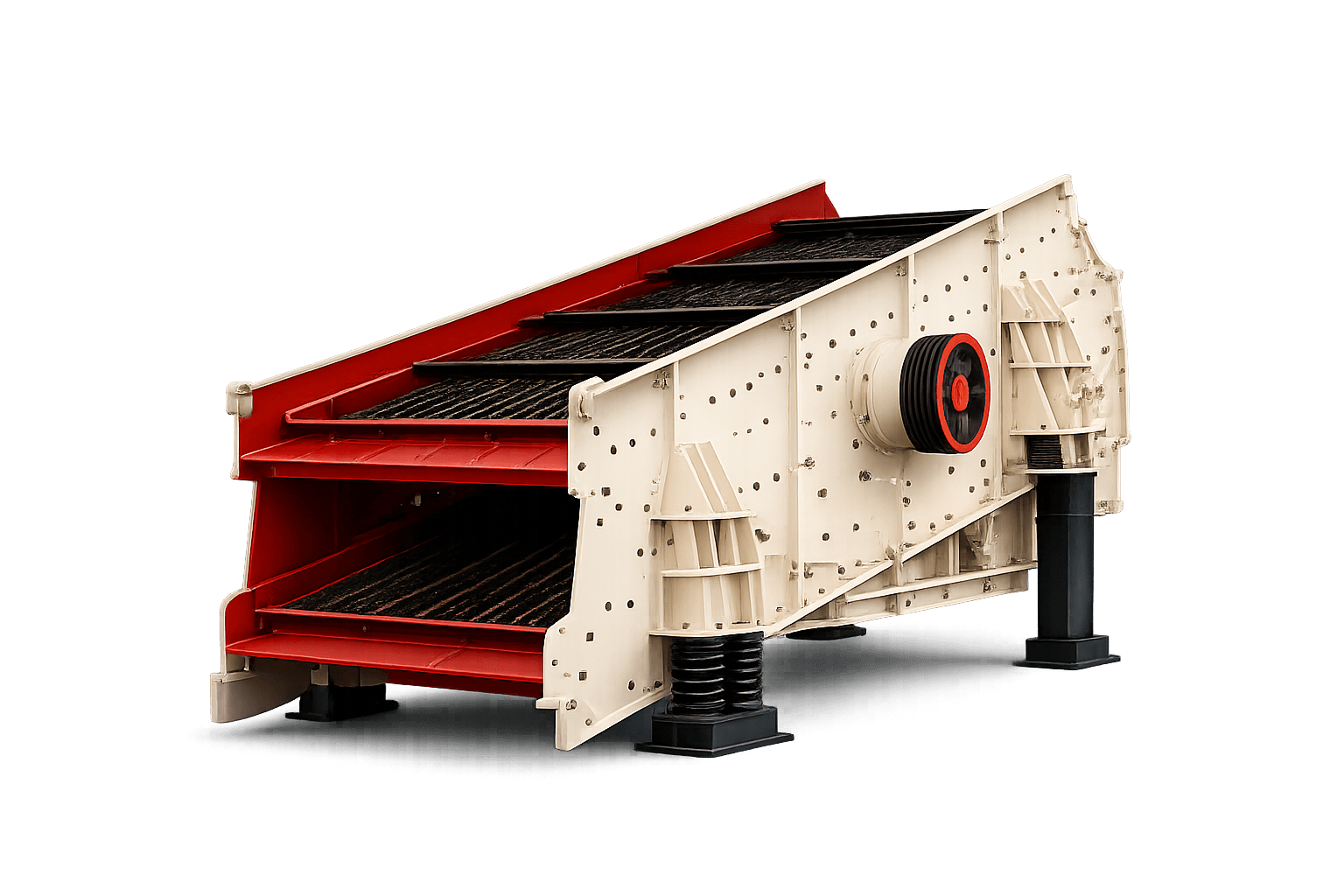

VIBRATING SCREENS
Accurate Separation. Higher Output.
Vibrating screens are designed for accurate material separation, high screening efficiency, and dependable operation in aggregate, mining, recycling, and cement plants.
Up to 250 mmFeed Range
7.5 - 45 kWMotor Power
Sizing / GradingApplication
///Technical Highlights///
PERFORMANCE IN EVERY DETAIL
Engineered for reliable output, simple maintenance, and long service life in demanding plant conditions.
Capacity
100 - 800 TPH
Production range by model and configuration
Feed Size
Up to 250 mm
Designed for demanding material flow
Motor Power
7.5 - 45 kW
Efficient drive options
Build Type
Heavy Duty
Robust industrial construction
Application
Sizing / Grading
Built for Performance. Engineered for Results.
Product Overview
SEPARATES WITH ACCURACY.RUNS WITH RELIABILITY.

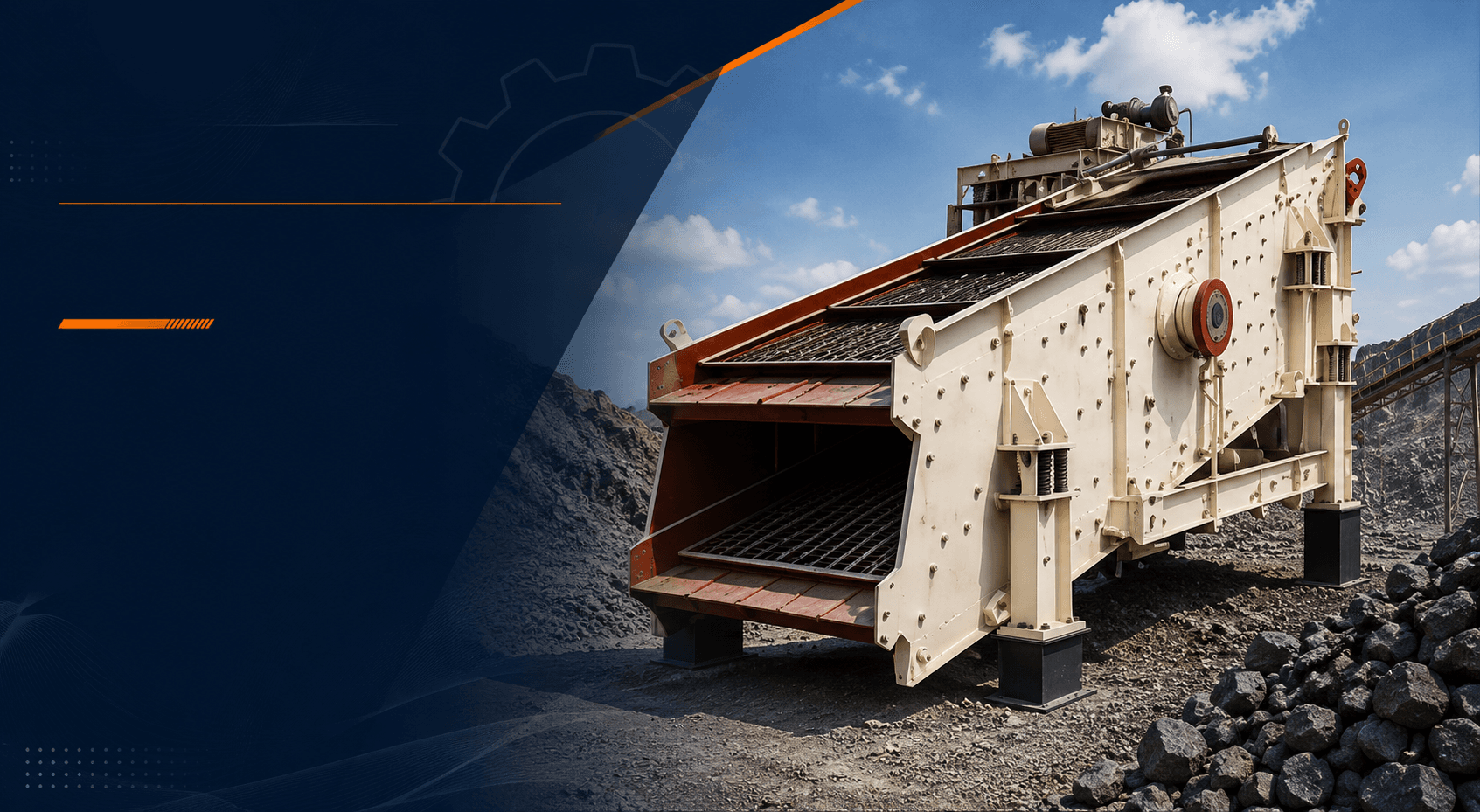

Pithal Vibrating Screens deliver efficient classification with robust decks, reliable drive systems, and flexible configurations for demanding materials.
Accurate Sizing
Deck layouts configured for precise material grades
Multi Deck Options
Available in single, double, triple, and four deck layouts
Strong Exciter
Reliable vibration mechanism for consistent screening
Easy Mesh Change
Service-friendly access for faster screen media changes
Applications
Configured for reliable performance across demanding industrial applications.
Aggregates
Mining
Construction
Recycling
Cement
Feed Box
Distributes material evenly across the deck
Screen Decks
Configurable decks for multiple product sizes
Vibration Drive
Reliable exciter system creates consistent motion
Screen Media
Mesh options selected for material and output
Discharge Chutes
Separate product streams move to stockpiles
ENGINEERED FOR SUPERIOR PERFORMANCE
Core systems designed to keep output stable, operation efficient, and maintenance predictable.
High Screening Efficiency
Optimized stroke and speed improve material stratification.
Flexible Decks
Multiple deck options suit different product sizes.
Robust Structure
Heavy-duty frame handles tough continuous duty.
Low Maintenance
Accessible decks and drive parts reduce downtime.
Consistent Grades
Reliable separation helps maintain product quality.
Built for PERFORMANCE. Engineered for RESULTS.
BUILT WITH PRECISION. DELIVERING PERFORMANCE.
Select the right prime vibrating screens model for your capacity, feed size, and plant layout.
Model | Feed / Deck Size | Max Feed Size | Capacity | Motor Power | Weight | Application |
|---|---|---|---|---|---|---|
| PMVS-1548 | 1500 x 4800 mm | 150 mm | 100 - 250 TPH | 7.5 - 15 kW | 6,500 kg | 2 / 3 Deck Screening |
| PMVS-1860 | 1800 x 6000 mm | 200 mm | 220 - 450 TPH | 15 - 22 kW | 9,800 kg | Aggregate Sizing |
| PMVS-2160 | 2100 x 6000 mm | 250 mm | 350 - 650 TPH | 22 - 37 kW | 13,500 kg | High Capacity Screening |
| PMVS-2460 | 2400 x 6000 mm | 250 mm | 500 - 800 TPH | 37 - 45 kW | 17,500 kg | Heavy-Duty Screening |
Specifications are subject to change based on configuration and application.
BUILT FOR EVERY INDUSTRY.
Prime Vibrating Screens engineered for reliable performance across demanding industrial sectors.
One Solution. Multiple Applications. Maximum Results.
Engineered to perform. Built to last.
FROM MATERIAL TO RESULTS.
A controlled process flow designed to deliver consistent output with dependable plant performance.
Loading...
01
Material Input
Raw material is loaded into the hopper by dump trucks or loaders.
Loading...
02
Feed Hopper
Feeder hopper regulates the continuous and uniform flow of materials.
Loading...
03
Primary Crushing
Jaw crusher reduces large rocks into smaller, manageable sizes.
Loading...
04
Secondary Crushing
Further size reduction using cone crusher for consistent output.
Loading...
05
Screening
Vibrating screens separate material into different sizes.
Loading...
06
Conveyor Belt
Carries materials to the desired location.
Loading...
07
Final Output
High-quality aggregates ready for various applications.
PROCESS FLOW
VIDEO SHOWCASE
SEE PERFORMANCE.
IN ACTION.

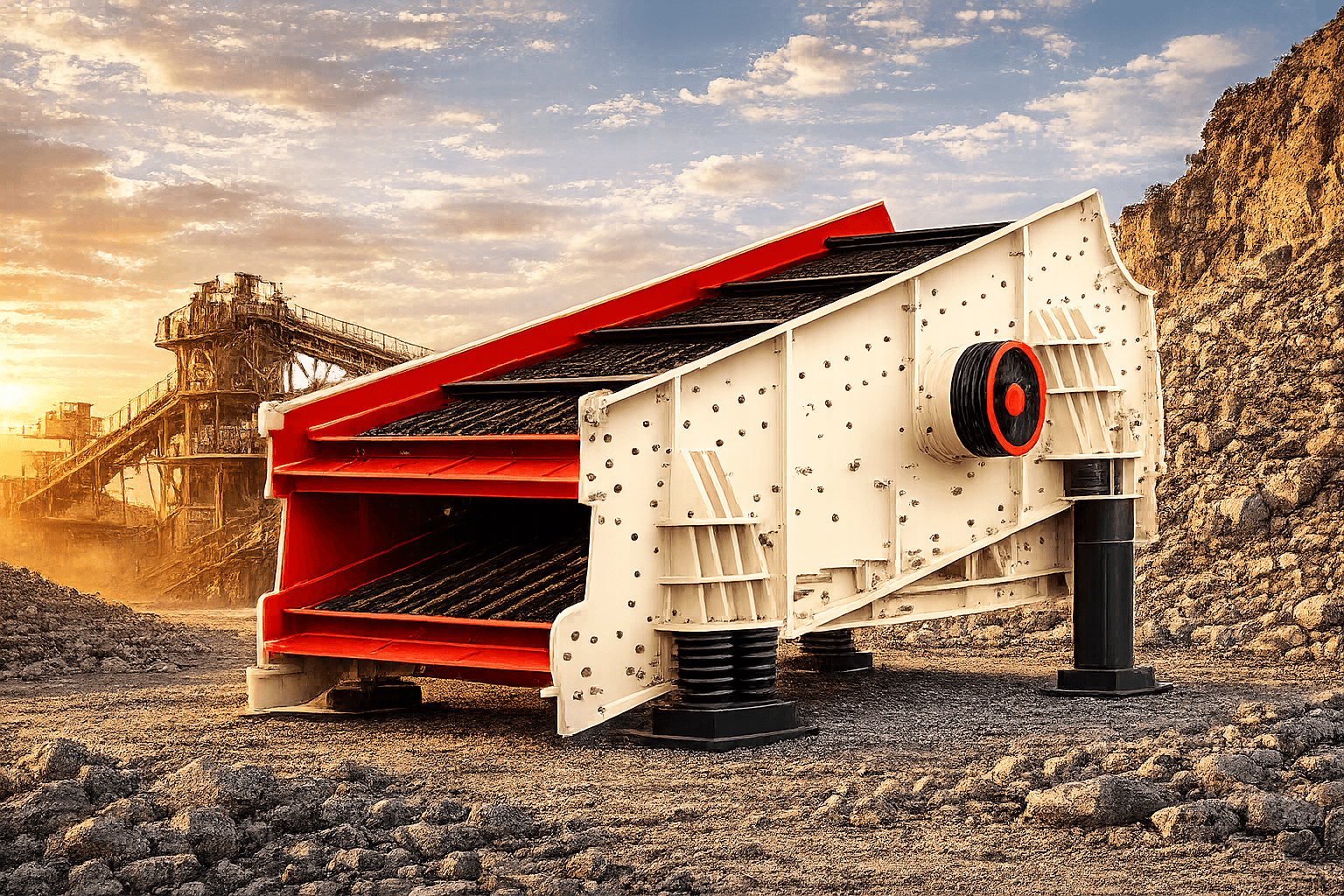

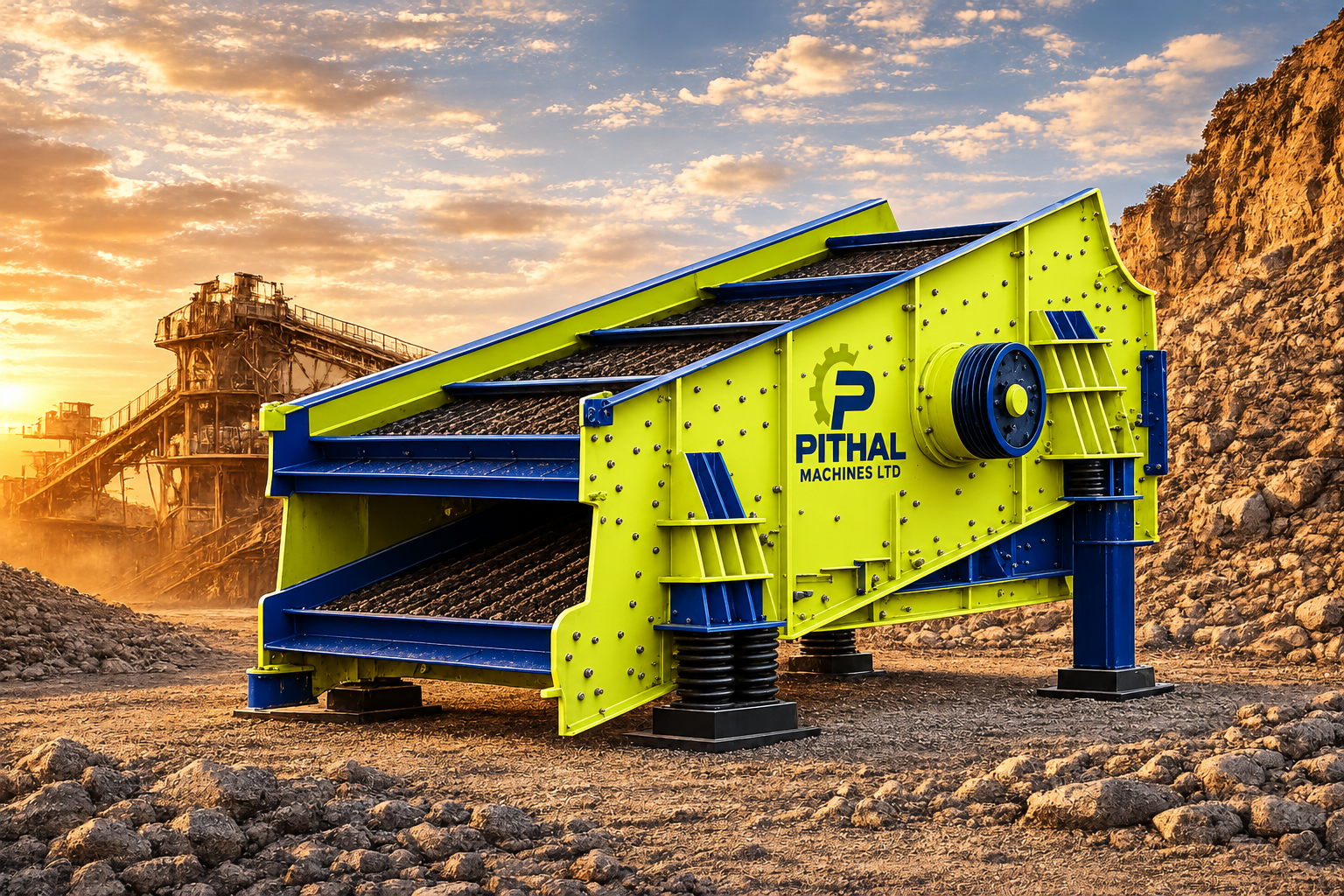

Watch how Pithal Prime Vibrating Screens deliver stable performance, high uptime, and reliable output in demanding plant conditions.
High Screening Efficiency
Optimized stroke and speed improve material stratification.
Flexible Decks
Multiple deck options suit different product sizes.
Robust Structure
Heavy-duty frame handles tough continuous duty.
Low Maintenance
Accessible decks and drive parts reduce downtime.
0:00 / 1:45
FULL MACHINE DEMONSTRATION
Explore every detail of our prime vibrating screens performance.
