PRIME CRUSHER BUCKET

BUILT FOR ON-SITE CRUSHING. ENGINEERED FOR VERSATILITY.

Prime Bucket Crusher is engineered for efficient on-site material crushing, offering a practical and versatile solution for excavator-based crushing applications across construction, quarrying, mining and material-processing operations.

FastCompletion

FuelSavings

HardoxBody

HydraulicDrive

PRIME CRUSHER BUCKETPERFORMANCE AND KEY TECHNICAL DETAILS

Discover the engineering and technical details behind efficient on-site crushing, dependable operation and versatile material-processing performance.

Excavator

8 - 50

Ton

Standard carrier machine range

Feed Size

Up to 1500

mm (Max)

Handles large debris

Oil Flow

80 - 240

LPM

Standard excavator circuit

Output Size

20 - 160

mm

Adjustable discharge setting

Weight

1,850 - 4,800

kg

Optimized for stability

Crush On Site. Save Costs. Build Faster.

PRIME CRUSHER BUCKETPRODUCT OVERVIEW

Prime Bucket Crusher is designed to deliver crushing directly to the job site, enabling operators to process materials efficiently with an excavator-mounted solution. Built for demanding applications, it supports practical material reduction across construction, quarrying, mining, demolition and recycling operations.

Hydraulic Drive

Direct operation from excavator circuit

Hardox Body

High abrasion resistance for long life

Adjustable CSS

Control output size from 20mm to 100mm

Anti-Jamming

Hydraulic reverse for blockage removal

Applications

Ideal for demolition, infrastructure projects, and space-constrained recycling sites.

C&D Waste Recycling

Road Reconstruction

Mining & Quarrying

Smart City Projects

Concrete Recycling

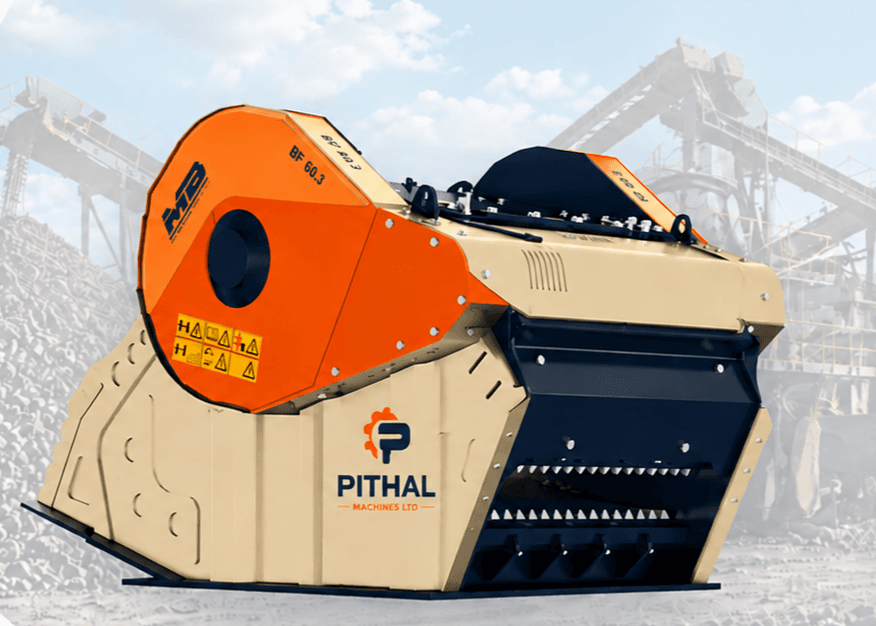

Prime Bucket Crusher excavator attachment system

Universal Hitch

Easy mounting on standard excavators

Manganese Jaws

High-grade steel for maximum wear life

Reversible Jaws

Increased operating life and lower cost

Heavy Duty Drive

Direct hydraulic drive from excavator circuit

Wear Chamber

Hardox reinforced chamber for tough aggregate crushing

Key Features ofPrime Bucket Crusher

Engineered for versatile on-site crushing, the Prime Bucket Crusher combines robust construction with practical operation to support reliable material processing across demanding applications.

High Crushing Ratio

Optimized chamber design ensures maximum reduction ratio for higher output.

Low Maintenance

Easy access design and fewer moving parts reduce maintenance time and cost.

Heavy Duty Build

Rugged construction with premium materials for longer service life.

Fuel Efficiency

Engineered for optimal power utilization and lower operating costs.

Wear Resistant Parts

High quality manganese steel components for maximum durability.

PRIME CRUSHER BUCKETTECHNICAL DATA

Explore the technical details behind the Prime Bucket Crusher’s performance, compatibility, crushing capability and reliable operation across different applications.

Model
Suitable Excavator
Bucket Capacity
Feed Opening
Production
Adjustable Output Size
Weight
PB708–12 Ton0.30 m³700 × 450 mm15–35 TPH20 – 100 mm1,850 kg
PB9012–20 Ton0.55 m³900 × 500 mm25–60 TPH20 – 120 mm2,650 kg
PB12020–35 Ton0.80 m³1200 × 550 mm50–100 TPH20 – 140 mm3,600 kg
PB15035–50 Ton1.20 m³1500 × 700 mm80–150 TPH20 – 160 mm4,800 kg

Specifications are subject to change based on excavator configuration and material properties.

PRIME BUCKET CRUSHERAPPLICATIONS

Engineered for flexible on-site crushing across construction, quarrying, mining, demolition, recycling and other material-processing applications.

Construction site recycling

Construction

RCC Demolition, Building Recycling, and Road Reconstruction.

Explore
Infrastructure project site

Infrastructure

Highways, Railways, Metro, and Smart City Projects.

Explore
Quarry waste handling

Mining

Limestone, Granite, Basalt, and Marble waste processing.

Explore
Recycling facility

Recycling

Sustainable processing of asphalt and concrete debris.

Explore
Aggregate production from crushed material

Aggregates

On-site aggregate production for roads, backfilling, and drainage.

Explore

One Solution. Multiple Applications. Maximum Results.

Engineered to perform. Built to last.

Request Quote

PRIME BUCKET CRUSHERWORKING PROCESS

A practical on-site crushing process designed to reduce excavated or processed material efficiently and deliver usable output directly at the project location.

Loading...
01

Material Input

Raw material is loaded into the hopper by dump trucks or loaders.

Loading...
02

Feed Hopper

Feeder hopper regulates the continuous and uniform flow of materials.

Loading...
03

Primary Crushing

Jaw crusher reduces large rocks into smaller, manageable sizes.

Loading...
04

Secondary Crushing

Further size reduction using cone crusher for consistent output.

Loading...
05

Screening

Vibrating screens separate material into different sizes.

Loading...
06

Conveyor Belt

Carries materials to the desired location.

Loading...
07

Final Output

High-quality aggregates ready for various applications.

PROCESS FLOW

SITE CRUSHING.
SIMPLIFIED.

Watch Prime Bucket Crusher transform demolition waste into valuable aggregates in seconds.

  • No Transport

    Eliminate trucking costs and logistics headaches.

  • Hydraulic Reverse

    Fast blockage removal for continuous operation.

  • Site Recycling

    Promote sustainability and circular economy.

  • Reduced Costs

    Lower manpower and equipment requirements.

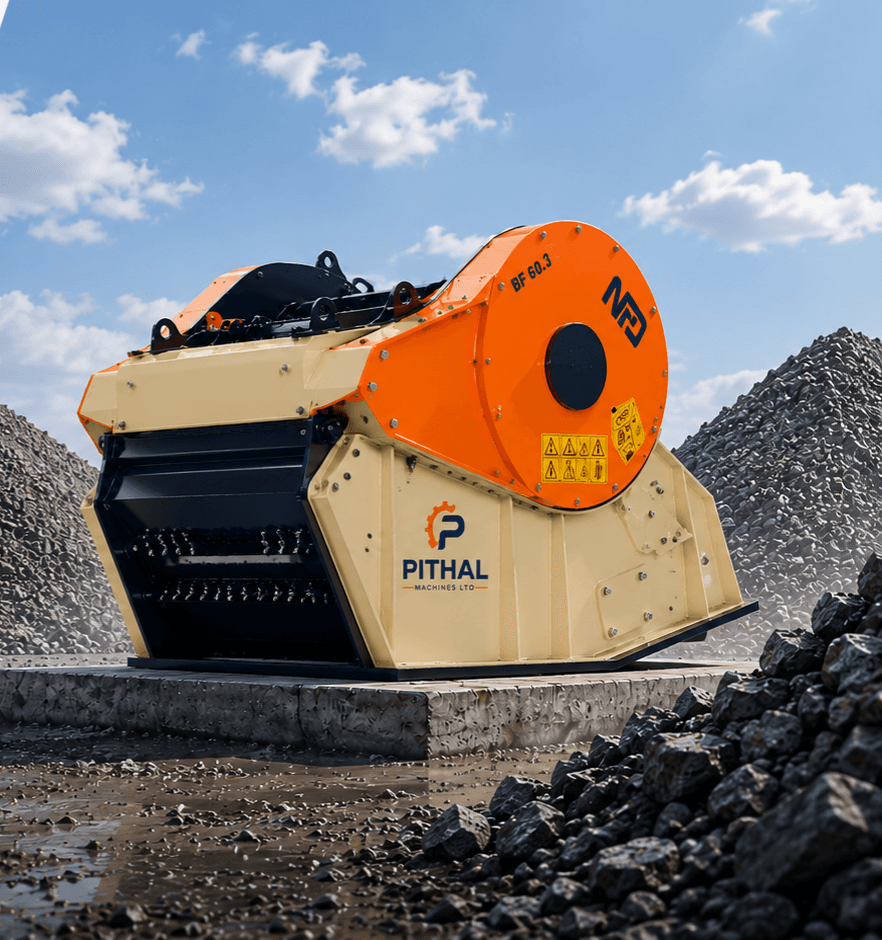

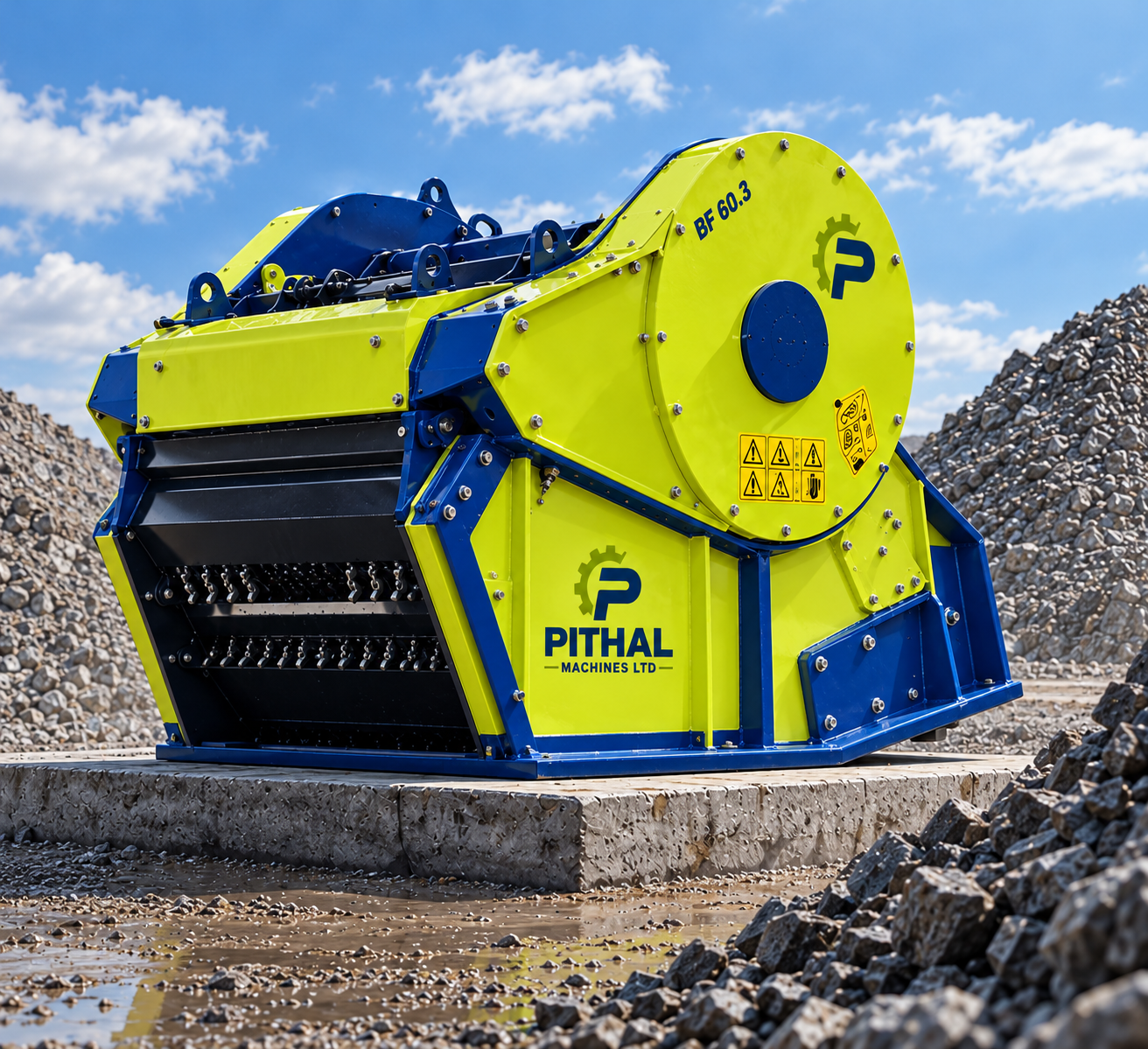

Prime Bucket Crusher performance video thumbnail
0:00 / 1:30

DEMOLITION SITE RECYCLING

Crush, recycle, and reuse on the spot.

EXPLORE OURCRUSHING EQUIPMENT

Explore Pithal Machines’ range of reliable crushing and screening solutions engineered to meet diverse material-processing requirements and demanding industrial applications.

Prime Jaw Crushers

Prime Jaw Crushers

Robust and reliable crushers built for high capacity and maximum efficiency.

VIEW DETAILS
Prime UltraRock

Prime UltraRock

Advanced crushing technology for extreme durability and performance.

VIEW DETAILS
Prime Bucket Crusher

Prime Bucket Crusher

Heavy-duty bucket systems for high-capacity material handling.

VIEW DETAILS
Prime Cone Crushers

Prime Cone Crushers

High efficiency screening equipment for accurate separation and productivity.

VIEW DETAILS
Prime VSI Crushers

Prime VSI Crushers

High efficiency screening equipment for accurate separation and productivity.

VIEW DETAILS
Prime Vibrating Screens

Prime Vibrating Screens

Strong and consistent feeding solutions for smooth and uninterrupted operations.

VIEW DETAILS
Prime Conveyor Systems

Prime Conveyor Systems

Strong and consistent feeding solutions for smooth and uninterrupted operations.

VIEW DETAILS
Prime Complete Plants

Prime Complete Plants

Custom-built complete crushing plants tailored to your specific needs and applications.

VIEW DETAILS
Prime M-Sand Crusher Plant

Prime M-Sand Crusher Plant

Integrated manufactured sand plants engineered for consistent quality and high productivity.

VIEW DETAILS
Prime Crusher Machine

Prime Crusher Machine

Powerful crushing solutions built for high performance, durability and maximum output.

VIEW DETAILS
Prime Jaw Crushers

Prime Jaw Crushers

Robust and reliable crushers built for high capacity and maximum efficiency.

VIEW DETAILS
Prime UltraRock

Prime UltraRock

Advanced crushing technology for extreme durability and performance.

VIEW DETAILS
Prime Bucket Crusher

Prime Bucket Crusher

Heavy-duty bucket systems for high-capacity material handling.

VIEW DETAILS
Prime Cone Crushers

Prime Cone Crushers

High efficiency screening equipment for accurate separation and productivity.

VIEW DETAILS
Prime VSI Crushers

Prime VSI Crushers

High efficiency screening equipment for accurate separation and productivity.

VIEW DETAILS
Prime Vibrating Screens

Prime Vibrating Screens

Strong and consistent feeding solutions for smooth and uninterrupted operations.

VIEW DETAILS
Prime Conveyor Systems

Prime Conveyor Systems

Strong and consistent feeding solutions for smooth and uninterrupted operations.

VIEW DETAILS
Prime Complete Plants

Prime Complete Plants

Custom-built complete crushing plants tailored to your specific needs and applications.

VIEW DETAILS
Prime M-Sand Crusher Plant

Prime M-Sand Crusher Plant

Integrated manufactured sand plants engineered for consistent quality and high productivity.

VIEW DETAILS
Prime Crusher Machine

Prime Crusher Machine

Powerful crushing solutions built for high performance, durability and maximum output.

VIEW DETAILS

REDUCE COSTS ON YOUR NEXT SITE.

Tell us your excavator model and site requirements, and we'll recommend the best Prime Bucket Crusher for you.

LOCAL MANUFACTURING

Fast delivery and easy spare parts access.

SITE ANALYSIS

Custom advice on recycling your specific waste.

ROI CALCULATION

See exactly how much you can save per TPH.

END TO END SUPPORT

Training for your operators and maintenance.

Need immediate assistance?

Talk to our crushing experts today.

Call Us Now+91 98875 37129
Contact CTA icon
Request a quote

REQUEST CONSULTATION

Fill in your requirements and we'll get back to you with the best solution.

e.g. 100 - 150 TPH

Your information is secure and will only be used to provide the best solution for your business.

Prime Bucket CrusherDownloads

Access product brochures, technical specifications and detailed documentation to explore the Prime Bucket Crusher’s features, capabilities, applications and operating requirements.

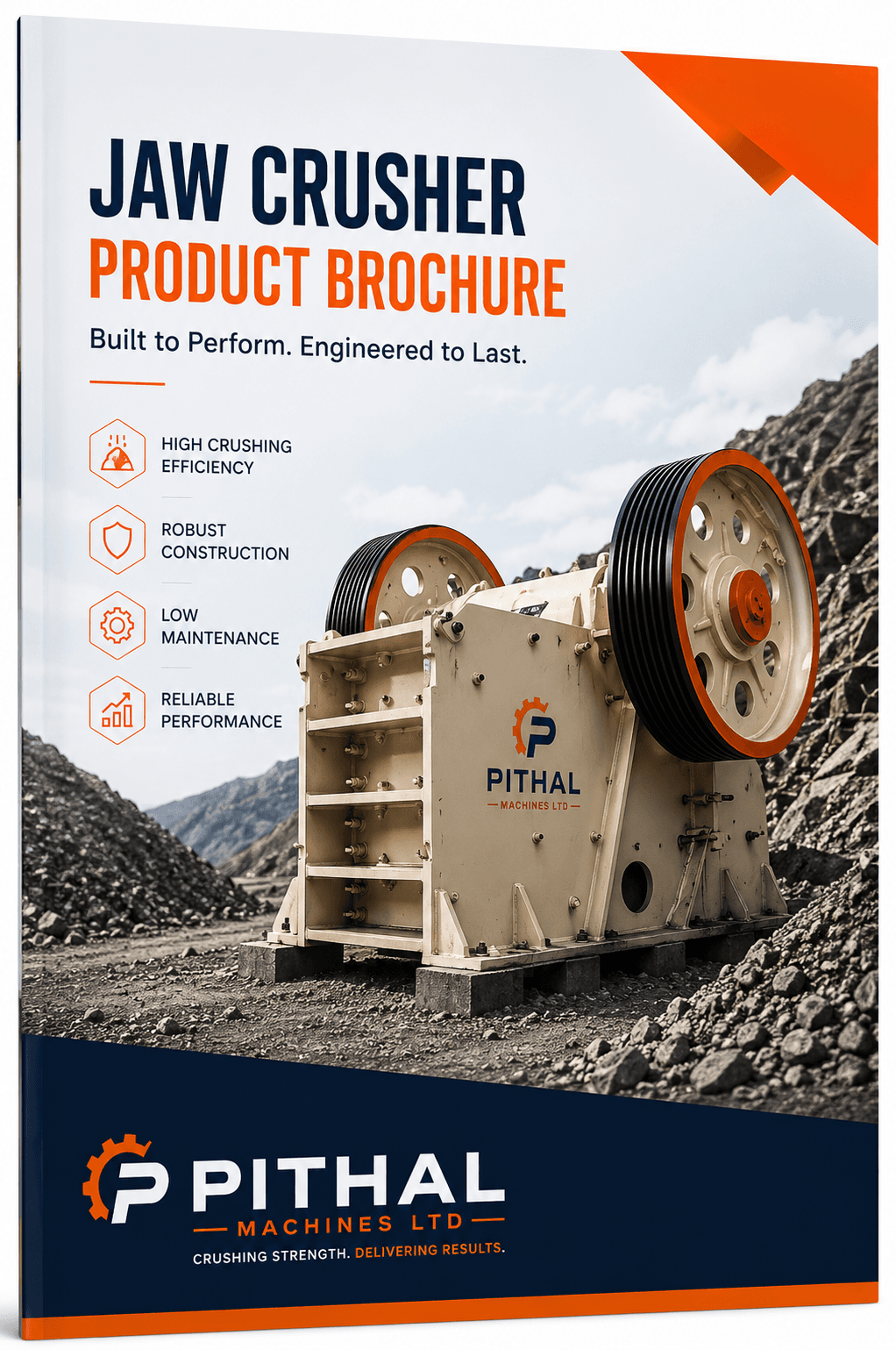

PRODUCT BROCHURE

PRODUCT BROCHURE

Overview of site crushing benefits and model range.

DOWNLOAD PDF

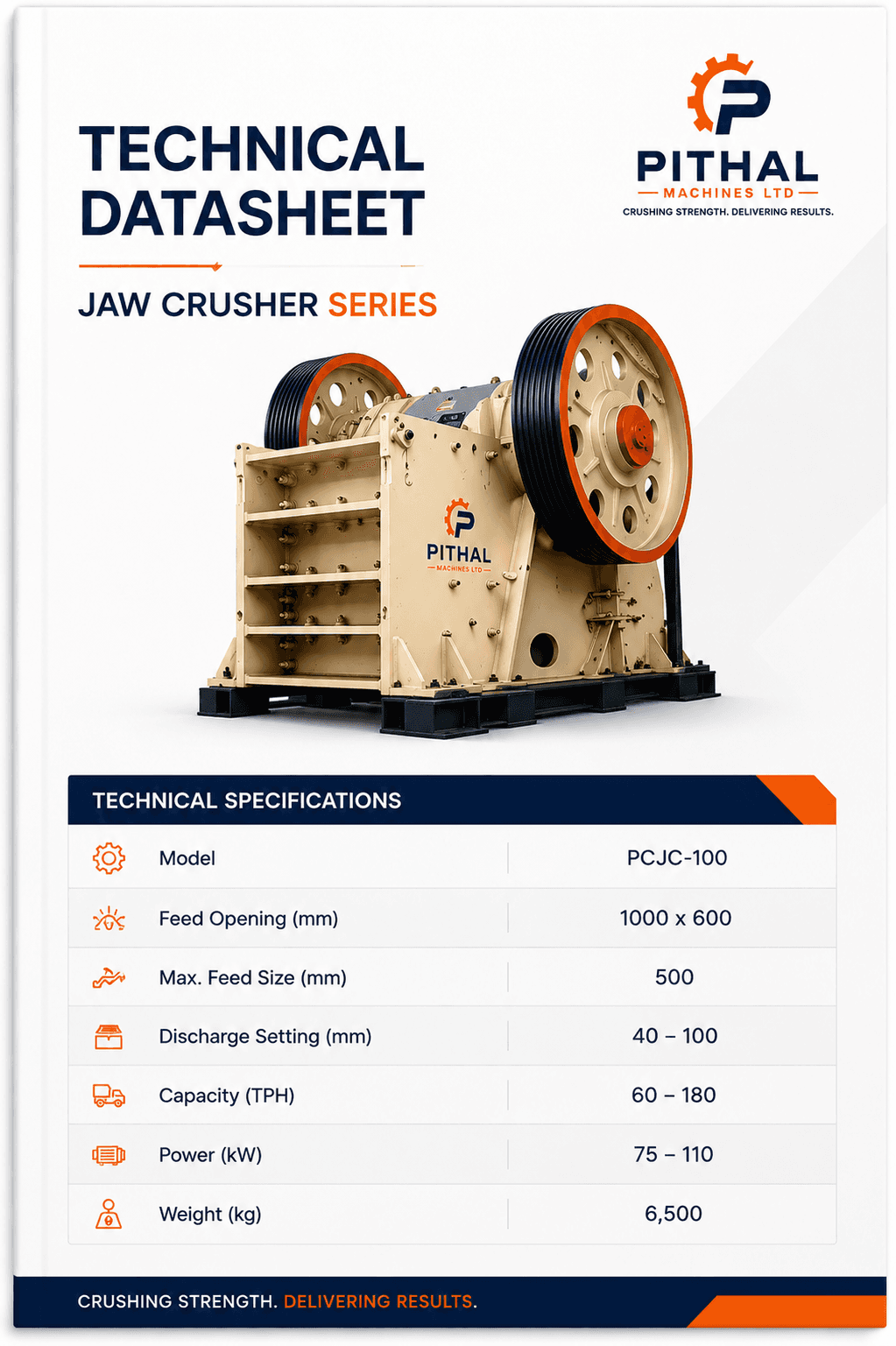

TECHNICAL DATASHEET

TECHNICAL DATASHEET

Detailed hydraulic requirements and dimensions.

DOWNLOAD PDF

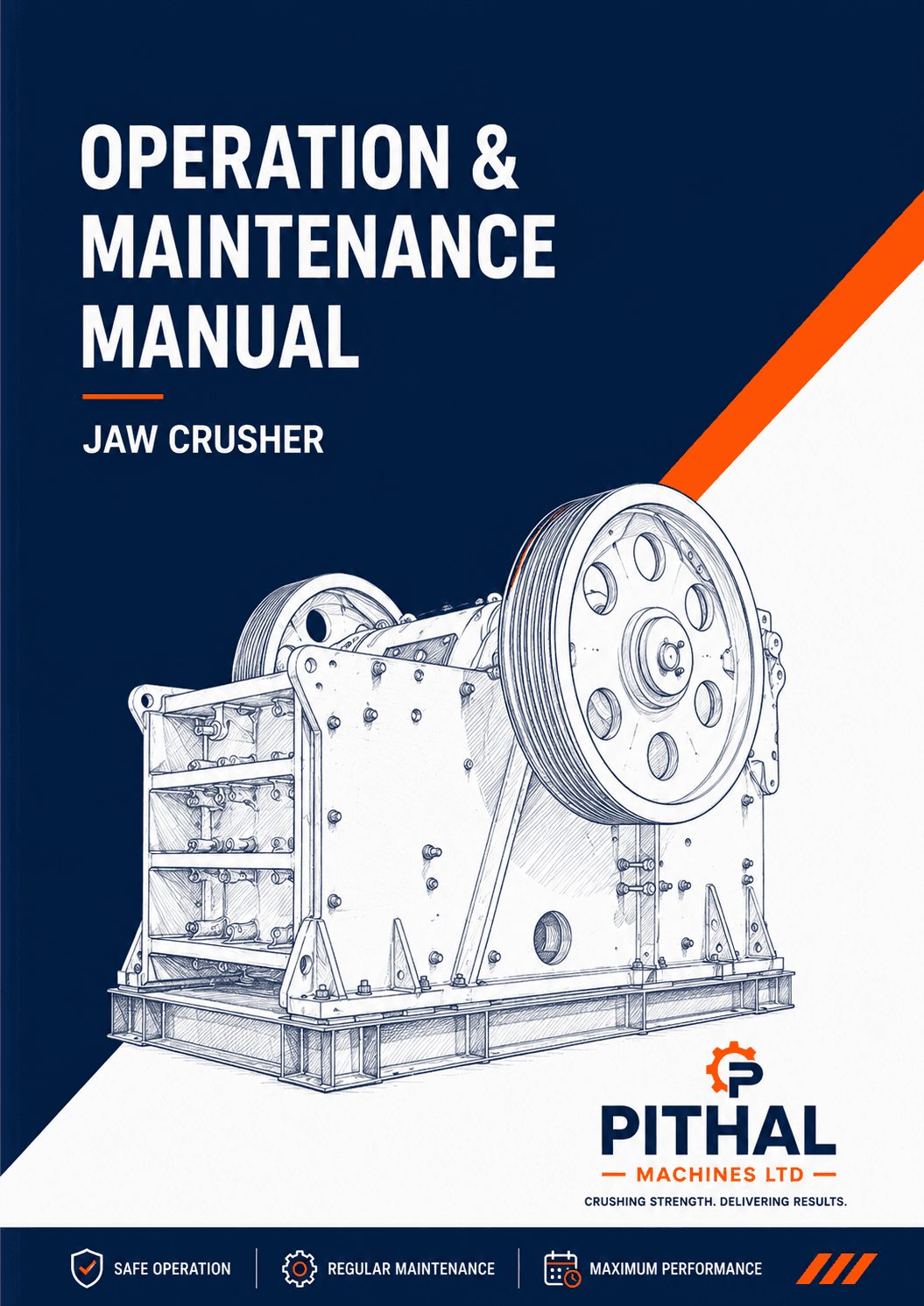

OPERATOR MANUAL

OPERATOR MANUAL

Best practices for installation and efficient operation.

DOWNLOAD PDF

FAST DELIVERY

Local manufacturing ensures short lead times.

SPARES SUPPORT

Ready stock of jaw plates and seal kits.

ON-SITE TRAINING

We help your team master site crushing.

24/7 HELPLINE

Technical support for excavator hydraulic questions.

CAN'T FIND WHAT YOU'RE LOOKING FOR?

Contact our team for customized documents or additional information.

REQUEST BROCHURE

Frequently AskedQuestions

A bucket crusher is used to crush suitable concrete, rocks, asphalt and demolition materials directly at a job site. It is commonly used in construction, demolition, quarrying, mining and recycling applications.
The Prime Bucket Crusher range offers published production capacities from 15 to 150 TPH, depending on the model. Actual output varies according to material properties and operating conditions.
The price depends on the attachment model, crushing capacity, excavator compatibility, technical specifications and configuration. Contact the manufacturer for a quotation based on your requirements.
No. Compatibility depends on the specific JCB model, hydraulic specifications, operating weight and mounting arrangement. Always confirm technical compatibility before purchasing.
Consider excavator weight, hydraulic flow, feed opening, material type, required output size and production capacity. These factors help determine the most suitable model.

Bucket Crusher Manufacturer in India – Pithal Machines

Crushing concrete, rocks and demolition waste at a construction site often involves additional transportation, material handling and operating costs. Moving heavy materials to a separate crushing plant can also slow down project operations. For contractors looking for a more flexible approach, a bucket crusher offers the ability to crush suitable materials directly at the job site using an excavator.

Pithal Machines offers the Prime Bucket Crusher, an excavator-mounted crushing attachment designed for construction, demolition, mining, quarrying and recycling applications. It combines hydraulic operation with a heavy-duty crushing mechanism to process suitable materials where they are generated.

With models designed for compatible excavators ranging from 8 to 50 tonnes, the Prime Bucket Crusher range addresses different project sizes and production requirements. Whether you are looking for a crusher bucket for excavator applications, comparing crushing capacities or researching the bucket crusher price, selecting the right equipment starts with understanding your operational requirements.

What Is a Bucket Crusher?

A bucket crusher is an excavator attachment designed to crush rocks, concrete, asphalt and other suitable materials into smaller sizes. Unlike a conventional excavator bucket used for digging and loading, it contains a crushing mechanism that performs material reduction.

A bucket crusher for excavator applications allows contractors to process suitable materials directly at the worksite. This can be particularly useful in demolition projects, road reconstruction, infrastructure development and construction waste recycling.

For example, when an old concrete structure is demolished, the resulting material may need to be crushed before further handling or reuse. With a suitable attachment, contractors can process this material closer to its source instead of transporting every load to an external crushing facility.

The crushed output can be considered for backfilling, roadwork and other construction applications, provided it meets the required quality and project specifications.

Prime Bucket Crusher Specifications

Pithal Machines offers four Prime Bucket Crusher models to accommodate different excavator sizes and crushing requirements.

Slide horizontally to view complete table
SpecificationDetails
Excavator compatibility8–50 tonnes
Maximum feed sizeUp to 1,500 mm
Hydraulic oil flow80–240 LPM
Adjustable output size20–160 mm, model-dependent
Attachment weight1,850–4,800 kg
Crushing mechanismJaw crushing system
Drive systemHydraulic

How Does a Crusher Bucket for Excavator Work?

A crusher bucket operates through the hydraulic system of a compatible excavator. Once mounted, the attachment uses hydraulic power to operate its internal jaw-crushing mechanism.

Material enters the crushing chamber, where the jaws apply compressive force to break it into smaller pieces. The adjustable closed-side setting (CSS) allows the discharge size to be selected according to the application and model.

The Prime Bucket Crusher features hydraulic reverse, which helps operators clear suitable material blockages by reversing the crushing mechanism. This can reduce interruptions during operation.

Before installation, it is important to check the excavator's hydraulic flow, operating pressure, machine weight and mounting compatibility. Correct equipment matching helps maintain efficient operation and reduces unnecessary stress on the machinery.

Applications of an Excavator Crusher

An excavator crusher is suitable for various industries where on-site crushing, material reduction and efficient handling of construction waste are important.

Construction and Demolition

Construction and demolition projects generate concrete, bricks, asphalt and other mineral-based waste. An excavator crusher can help reduce suitable materials directly at the site, making them easier to manage and process.

This is particularly useful for RCC demolition, building renovation, road reconstruction and construction waste recycling.

Road Construction and Infrastructure

Highway development, railway projects, metro construction and smart city projects often involve removing existing concrete, asphalt and rock material. A bucket crusher can help process suitable material closer to the working area.

On-site crushing may simplify material handling and reduce the need for repeated transportation, depending on the project's requirements.

Mining and Quarrying

Mining and quarrying operations involve handling hard and abrasive materials such as limestone, granite, basalt and marble waste. The Prime Bucket Crusher is designed for selected material-processing applications where excavator-mounted crushing is suitable.

The appropriate model should be selected according to material characteristics, excavator capacity and expected production.

Concrete and Asphalt Recycling

Recycling suitable concrete and asphalt helps reduce construction waste and supports better material utilisation. A crusher bucket can process selected debris into smaller sizes for approved secondary applications.

The final material must meet the required engineering and quality standards before reuse.

Benefits of Using an Excavator with Crusher Attachment

An excavator with crusher attachment combines excavation equipment with material-crushing capabilities. This arrangement can be useful for contractors who need flexibility across different working locations.

On-Site Material Crushing

Processing suitable material where it is generated can reduce unnecessary movement between the demolition area and an external crushing facility. This may simplify site logistics and improve material-handling efficiency.

Heavy-Duty Construction

The Prime Bucket Crusher features a Hardox body designed to withstand abrasive working conditions. Its manganese steel jaws provide wear resistance during crushing operations.

Hydraulic Reverse Function

Material blockages can interrupt crushing operations. The hydraulic reverse function helps clear suitable blockages by reversing the crushing mechanism, reducing unnecessary downtime.

Reversible Jaw Design

Reversible jaws help improve the utilisation of wear components and can support longer operating life when maintained and used correctly.

Lower Material Handling Requirements

By bringing crushing capability closer to the material source, contractors may reduce certain transportation and handling requirements. Actual savings depend on project size, operating hours, fuel consumption and maintenance costs.

How to Choose the Right Bucket Crusher

Selecting the right attachment requires more than matching its physical size with an excavator. The equipment must suit the machine, material and expected production.

  • Excavator compatibility: Check the machine's operating weight, hydraulic flow, pressure and mounting arrangement before selecting a model.
  • Material type: Consider whether you will process concrete, asphalt, natural stone or demolition waste. Material hardness and contamination can influence crushing performance.
  • Feed opening: Check the maximum feed dimensions to ensure that the material can enter the crushing chamber without unnecessary preparation.
  • Production capacity: Estimate the amount of material you need to process per hour and compare it with the selected model's published TPH range.
  • Output size: Choose a model based on the required discharge size and the intended use of the crushed material.
  • Maintenance support: Consider spare-part availability, jaw replacement, service assistance and maintenance requirements before purchasing.

A properly matched crusher bucket can help improve operating efficiency and avoid unnecessary equipment-related expenses.

Bucket Crusher Price in India: What Determines the Cost?

The bucket crusher price depends on the selected model, crushing capacity, attachment weight, hydraulic requirements and configuration. Larger models designed for heavier excavators and higher production requirements generally involve a different investment from smaller models.

However, purchase price should not be the only deciding factor. Buyers should also consider maintenance expenses, replacement wear parts, expected production, operating costs and the potential savings from reduced material transportation.

Pithal Machines provides quotation assistance based on the customer's equipment and project requirements. Sharing your excavator model, material type, required output size and production target can help the team recommend an appropriate configuration.

JCB Crusher Bucket: Compatibility and Price

A JCB crusher bucket is a common search term among contractors looking for crushing attachments for JCB excavators and backhoe loaders.

However, not every crusher attachment is compatible with every JCB machine. Compatibility depends on the excavator's operating weight, hydraulic flow, pressure, mounting arrangement and attachment requirements.

The JCB crusher bucket price also varies depending on the selected model, specifications, capacity and supplier. Buyers should compare technical suitability, maintenance requirements, warranty and service support before making a purchase.

If you operate a JCB machine, share its exact model and technical specifications with Pithal Machines to check whether a suitable Prime Bucket Crusher configuration is available.

Why Choose Pithal Machines for Bucket Crushers?

Choosing industrial crushing equipment requires a manufacturer that understands the practical requirements of construction, demolition and material-processing projects.

Pithal Machines offers the Prime Bucket Crusher range with different configurations for compatible excavators from 8 to 50 tonnes.

Its key product features include a Hardox body, manganese steel jaws, hydraulic drive, adjustable output and hydraulic reverse. The company also highlights local manufacturing, spare-parts access, site analysis, ROI calculations and operator training.

Customers can discuss their material-processing requirements with the team and receive guidance on model selection, hydraulic compatibility and production expectations.

With technical documentation, maintenance assistance and operator support, Pithal Machines aims to help customers select equipment that matches their actual working conditions.

Get the Right Bucket Crusher from Pithal Machines

Choosing the right crushing attachment can make a difference in how efficiently construction, demolition and recycling projects handle material. The key is to select equipment that matches your excavator's capabilities and your project's production requirements.

Pithal Machines offers the Prime Bucket Crusher range for different excavator sizes and on-site crushing applications.

Contact Pithal Machines today to request a quotation. Share your excavator model, material type and expected production capacity to receive guidance on selecting the right bucket crusher for your application.
