100 - 450TPH Capacity
Secondary & Tertiary Crushing
CONE CRUSHERS
High Efficiency. Excellent Product Shape.
Cone crushers are designed for secondary and tertiary crushing applications, delivering high reduction ratio, uniform product size, hydraulic adjustment, and stable performance for mining, aggregates, cement, and infrastructure industries.
185 - 300MM Feed Size
132 - 400KW Motor Power
Secondary / TertiaryCrushing
///Technical Highlights///
PERFORMANCE IN EVERY DETAIL
Engineered for high crushing efficiency, uniform output size, and reliable operation.
Capacity
100 - 450
TPH
High output secondary crushing
Max Feed Size
185 - 300
MM
Handles controlled feed sizes
Motor Power
132 - 400
KW
Efficient drive power range
Cone Type
STD / SH
Standard and short-head options
Application
MiningAggregatesCement
Built for Performance. Engineered for Results.
Product Overview
BUILT FOR PRECISION.CRUSHES WITH POWER.
Pithal Cone Crushers are engineered for high reduction ratio, excellent particle shape, and consistent performance in demanding secondary and tertiary crushing operations. Built with a robust frame, hydraulic adjustment, and wear-resistant liners, these machines deliver long-term productivity with reduced downtime.
High Reduction Ratio
Optimized chamber geometry for stronger size reduction
Uniform Product Size
Consistent cubical output for aggregate applications
Hydraulic Adjustment
Fast CSS setting control for flexible operation
Stable Performance
Smooth crushing behavior under heavy-duty load
Heavy-Duty Main Frame
Robust structure for long operating life
Wear-Resistant Liners
Durable mantle and concave for longer service cycles
Low Operating Cost
Efficient power use with strong production output
Easy Maintenance
Service-friendly access for inspection and liner changes
Applications
Ideal for secondary and tertiary crushing of hard rock, ore, limestone, and aggregates. Widely used in mining, quarrying, cement, and construction plants.
Mining
Aggregates
Construction
Cement
Recycling

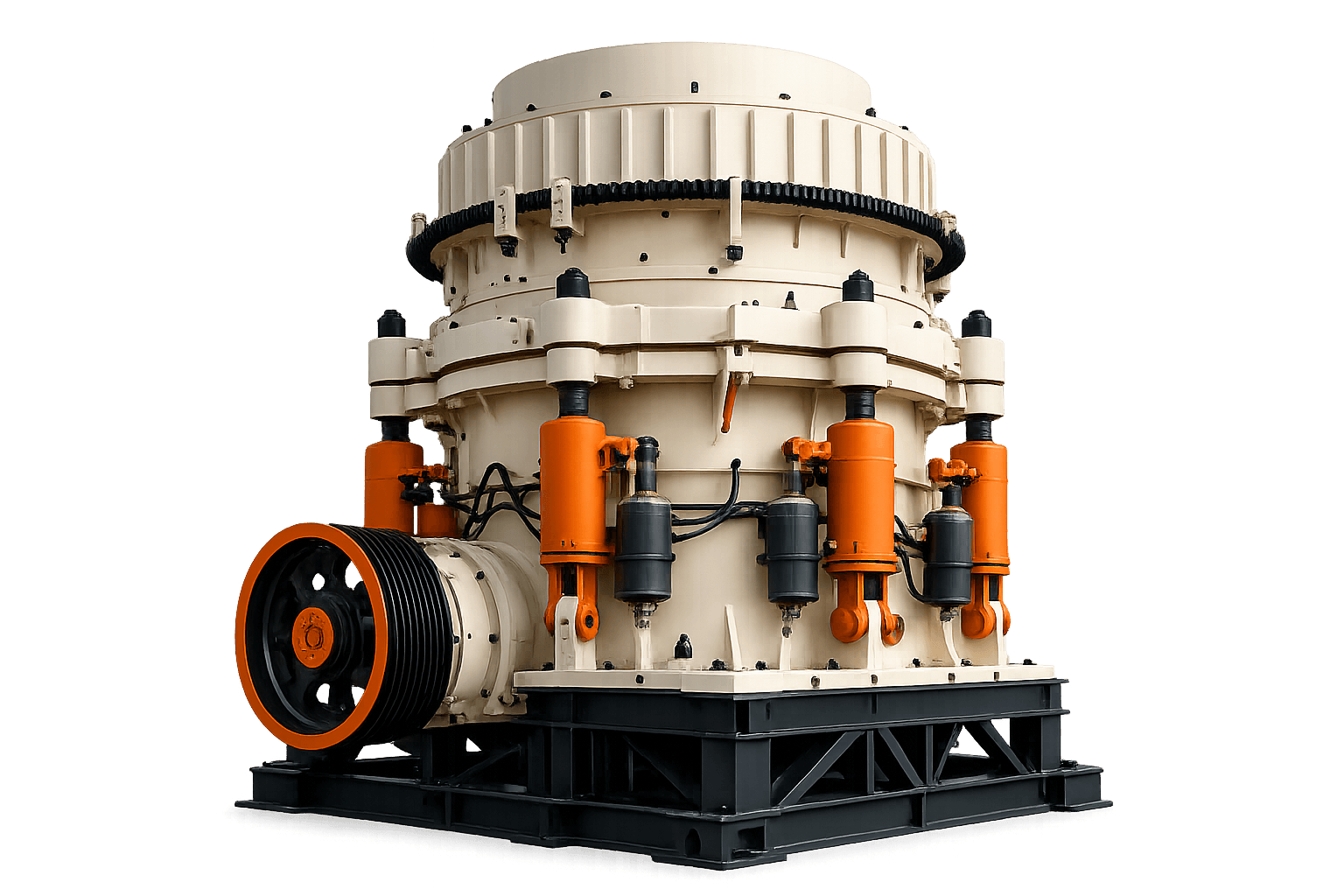

Hydraulic Adjustment System
Quick setting control for consistent product size
Heavy-Duty Crushing Chamber
Optimized chamber profile for high reduction ratio
Mantle & Concave
Wear-resistant liners for long service life
Inspection Access
Easy service access for maintenance and uptime
Drive System
High-performance drive for stable crushing output
Stable Base Frame
Reinforced frame for vibration control and durability
Engineered For Superior Performance
Our Prime Cone Crushers are built with advanced engineering and premium quality components to deliver unmatched performance, reliability and efficiency.
High Crushing Ratio
Optimized chamber design ensures maximum reduction ratio for higher output.
Low Maintenance
Easy access design and fewer moving parts reduce maintenance time and cost.
Heavy Duty Build
Rugged construction with premium materials for longer service life.
Fuel Efficiency
Engineered for optimal power utilization and lower operating costs.
Wear Resistant Parts
High quality manganese steel components for maximum durability.
Built for PERFORMANCE. Engineered for RESULTS.
BUILT WITH PRECISION. DELIVERING PERFORMANCE.
Select the right cone crusher model for feed size, capacity, cone type, and final output requirement.
Model | Cone Type | Max Feed Size (MM) | Capacity (TPH) | Motor Power (KW) | Weight (KG) | Application |
|---|---|---|---|---|---|---|
| PMCC-150 | STD | 185 | 100 - 150 | 132 - 160 | 12000 | Secondary Crushing |
| PMCC-200 | STD | 215 | 150 - 250 | 160 - 220 | 18500 | Secondary Crushing |
| PMCC-300 | STD | 265 | 220 - 350 | 220 - 315 | 26500 | Secondary / Tertiary |
| PMCC-400 | STD | 300 | 350 - 450 | 315 - 400 | 38500 | Heavy-Duty Crushing |
Specifications are subject to change based on configuration and application.
BUILT FOR EVERY INDUSTRY.
Cone crushing solutions engineered for secondary and tertiary applications across demanding industries.
One Solution. Multiple Applications. Maximum Results.
Engineered to perform. Built to last.
FROM ROCK TO RESULTS.
A controlled crushing flow designed to deliver high reduction, uniform shape, and classified final aggregates.
Loading...
01
Material Input
Raw material is loaded into the hopper by dump trucks or loaders.
Loading...
02
Feed Hopper
Feeder hopper regulates the continuous and uniform flow of materials.
Loading...
03
Primary Crushing
Jaw crusher reduces large rocks into smaller, manageable sizes.
Loading...
04
Secondary Crushing
Further size reduction using cone crusher for consistent output.
Loading...
05
Screening
Vibrating screens separate material into different sizes.
Loading...
06
Conveyor Belt
Carries materials to the desired location.
Loading...
07
Final Output
High-quality aggregates ready for various applications.
PROCESS FLOW

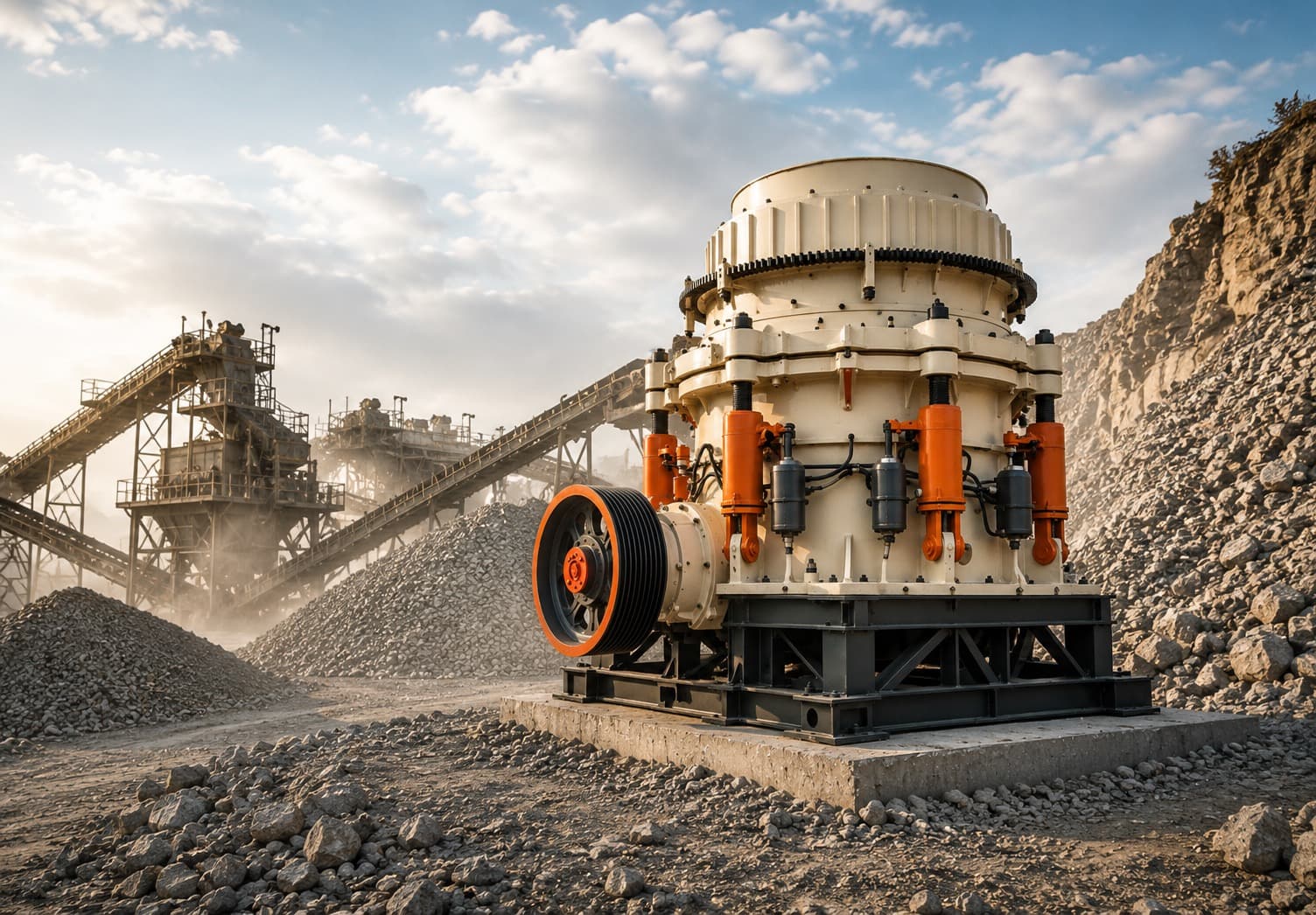

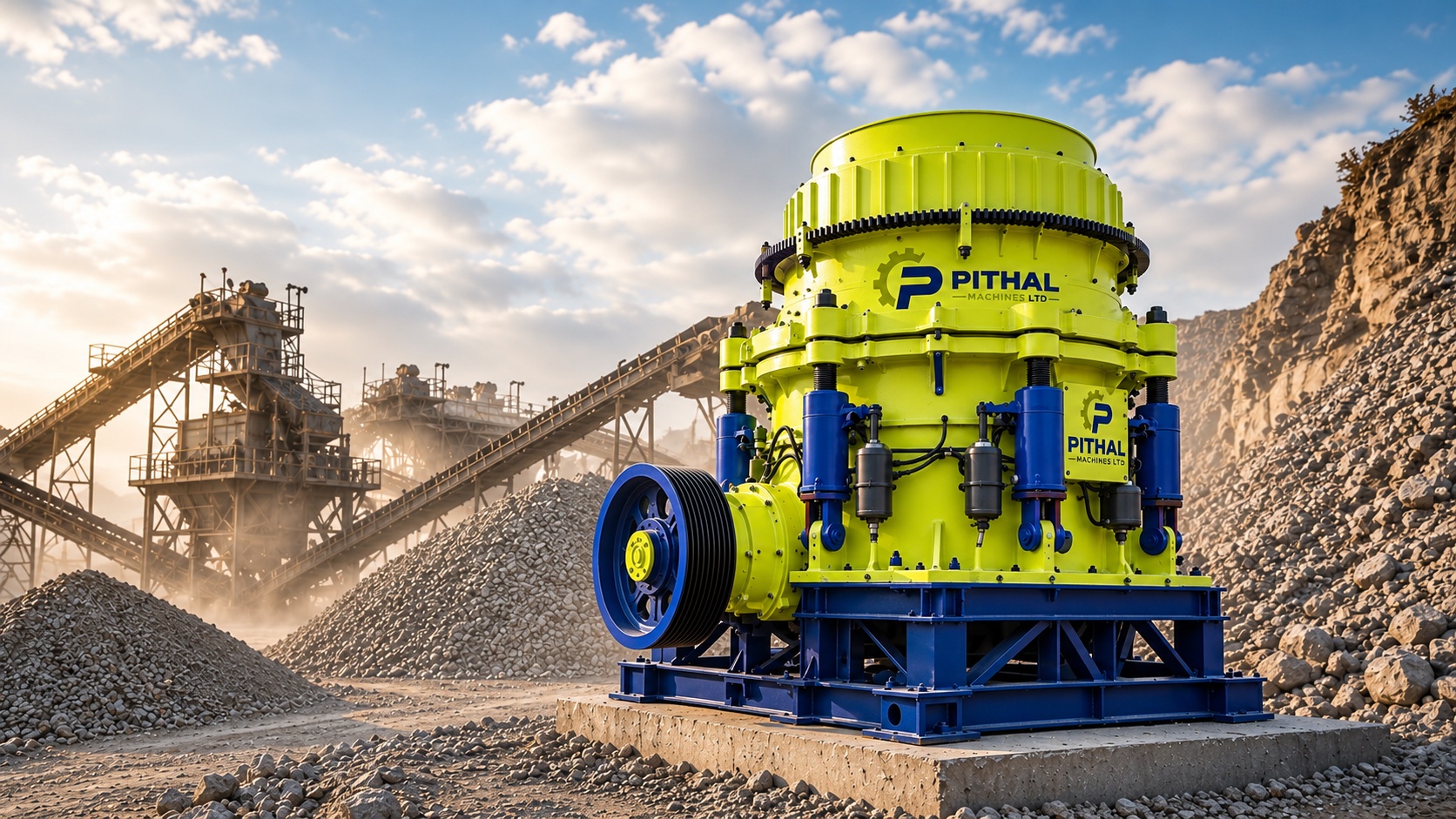

VIDEO SHOWCASE
SEE PERFORMANCE.
IN ACTION.
Watch how Pithal Cone Crushers deliver stable crushing performance, high throughput, and uniform product shape in demanding plant conditions.
High Reduction Ratio
Efficient chamber geometry for controlled secondary crushing.
Uniform Cubical Output
Consistent product shape for aggregate and construction needs.
Smooth Hydraulic Adjustment
Fast CSS control helps maintain uptime and output quality.
Reliable Heavy-Duty Operation
Stable performance in tough plant conditions.
0:00 / 1:45
FULL MACHINE DEMONSTRATION
Explore every detail of our cone crusher performance.
RELATED PRODUCTS
COMPLETE YOUR CRUSHING SOLUTION.
Explore machines designed to work seamlessly with cone crushers for feeding, primary crushing, screening, conveying, and final plant output.
Prime Jaw Crushers
Robust and reliable crushers built for high capacity and maximum efficiency.
Prime UltraRock
Advanced crushing technology for extreme durability and performance.
Prime Bucket Crusher
Heavy-duty bucket systems for high-capacity material handling.
Prime Cone Crushers
High efficiency screening equipment for accurate separation and productivity.
Prime VSI Crushers
High efficiency screening equipment for accurate separation and productivity.
Prime Vibrating Screens
Strong and consistent feeding solutions for smooth and uninterrupted operations.
Prime Conveyor Systems
Strong and consistent feeding solutions for smooth and uninterrupted operations.
Prime Complete Plants
Custom-built complete crushing plants tailored to your specific needs and applications.
Prime Jaw Crushers
Robust and reliable crushers built for high capacity and maximum efficiency.
Prime UltraRock
Advanced crushing technology for extreme durability and performance.
Prime Bucket Crusher
Heavy-duty bucket systems for high-capacity material handling.
Prime Cone Crushers
High efficiency screening equipment for accurate separation and productivity.
Prime VSI Crushers
High efficiency screening equipment for accurate separation and productivity.
Prime Vibrating Screens
Strong and consistent feeding solutions for smooth and uninterrupted operations.
Prime Conveyor Systems
Strong and consistent feeding solutions for smooth and uninterrupted operations.
Prime Complete Plants
Custom-built complete crushing plants tailored to your specific needs and applications.
REQUEST CONSULTATION
LET'S BUILD THE RIGHT
SOLUTION FOR YOU.
Share your crushing requirement and our technical team will help you select the right Cone Crusher model based on feed size, capacity, application, and final output requirement.
MODEL SELECTION SUPPORT
Choose the right cone model for your feed and output.
PLANT LAYOUT GUIDANCE
Plan crusher, feeder, screen, and conveyor flow.
CAPACITY PLANNING
Match throughput targets with plant configuration.
AFTER-SALES SUPPORT
Get spares, liner, service, and technical assistance.
Need immediate assistance?
Talk to our crushing experts today.
Call Us Now+91 98875 37129
Request a quote
REQUEST EXPERT CONSULTATION
Fill in your requirements and we'll get back to you with the best solution.
Downloads
RESOURCES TO SUPPORT YOUR SUCCESS.
Access cone crusher brochures, technical datasheets, installation references, and maintenance guidance.

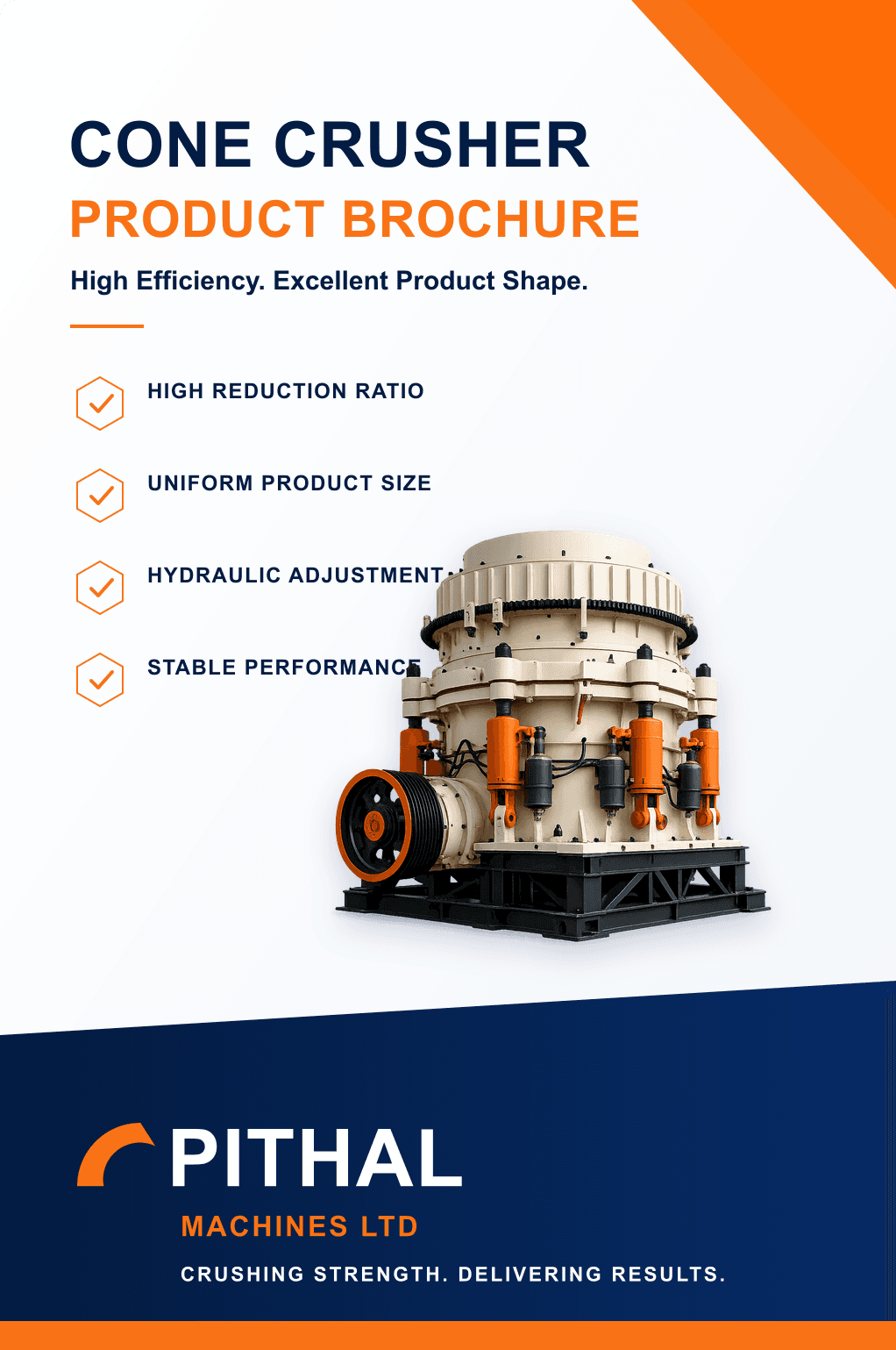

CONE CRUSHER BROCHURE
Overview of cone crusher models, strengths, and applications.

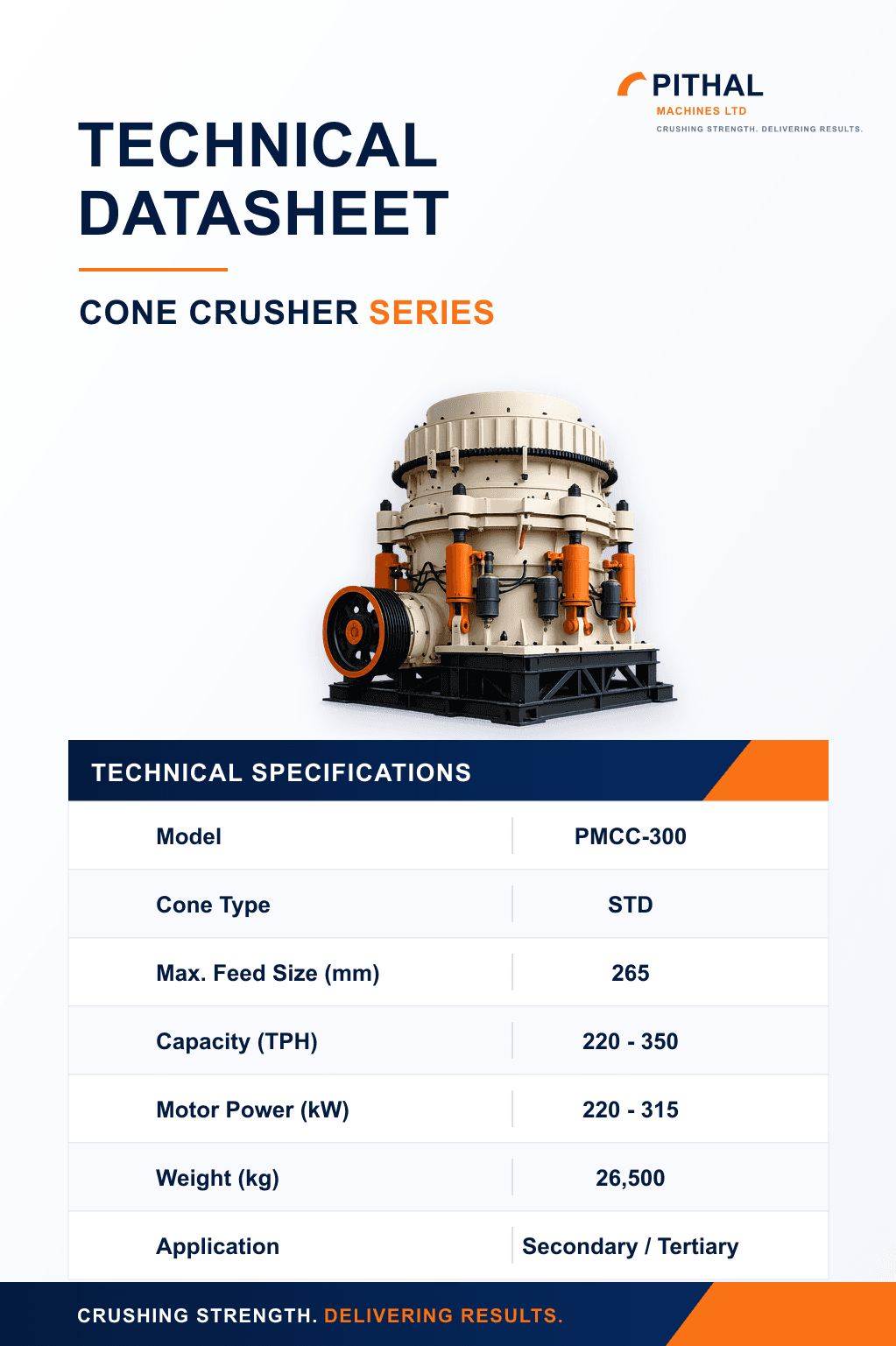

TECHNICAL DATASHEET
Model dimensions, motor ratings, feed sizes, and capacity ranges.

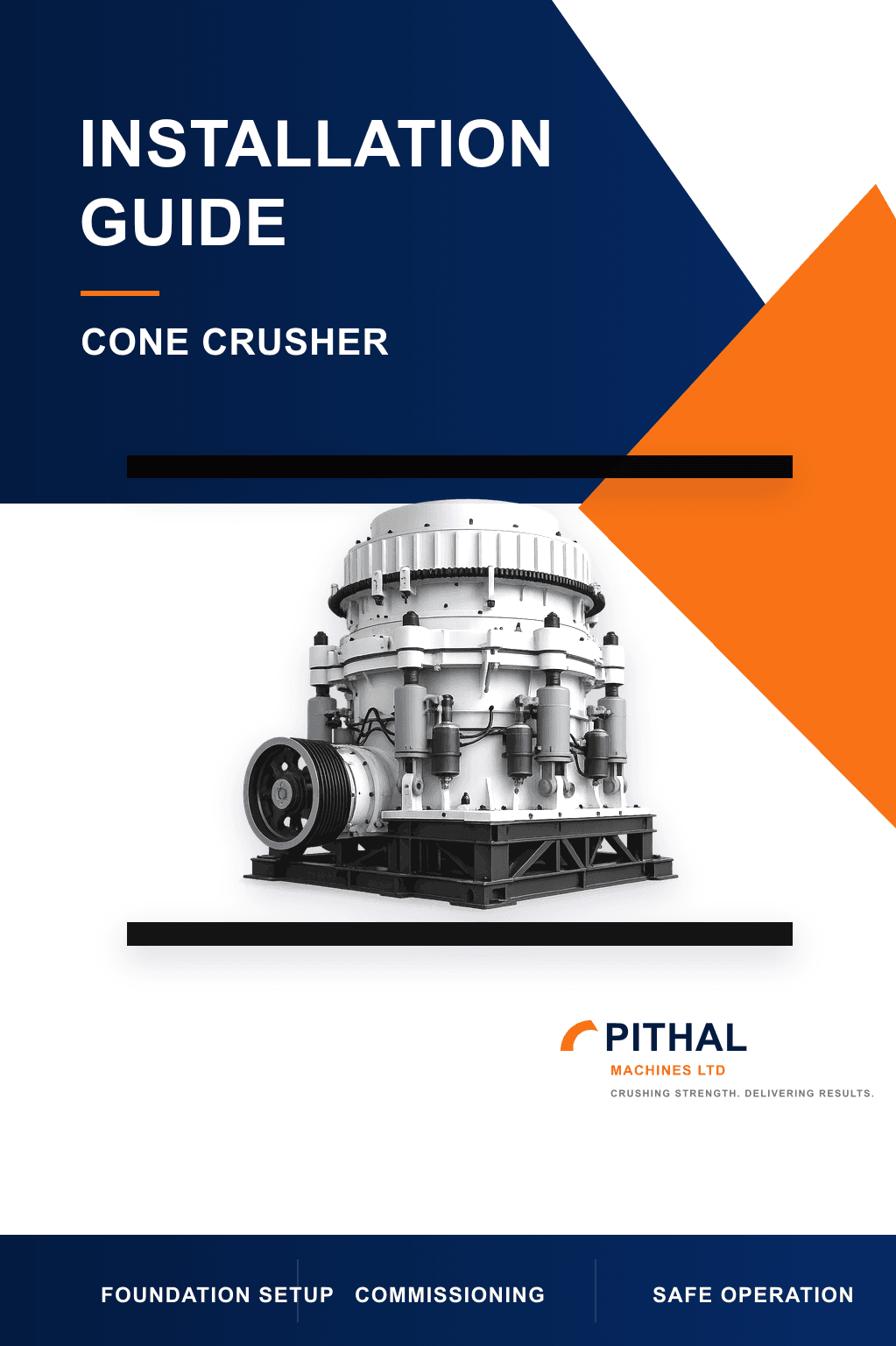

INSTALLATION GUIDE
Foundation, placement, and commissioning planning notes.

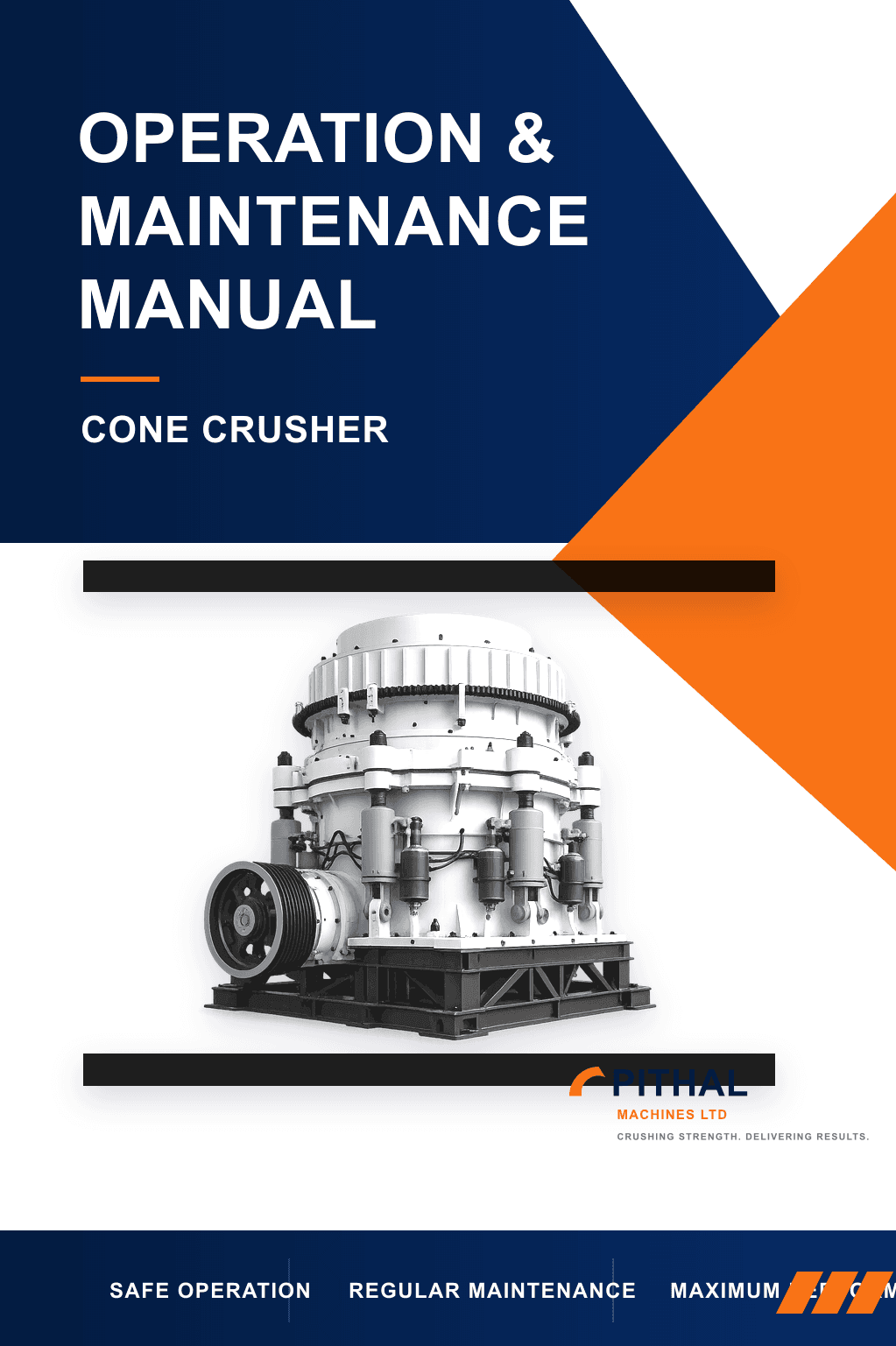

MAINTENANCE MANUAL
Inspection schedule, liner checks, and maintenance guidance.
TECHNICAL SUPPORT
Expert help for model selection and configuration.
INSTALLATION ASSISTANCE
Guidance for setup, foundation, and commissioning.
SPARE PARTS SUPPORT
Support for liners, wear parts, and critical spares.
WARRANTY SUPPORT
Reliable assistance throughout equipment lifecycle.
CAN'T FIND WHAT YOU'RE LOOKING FOR?
Contact our team for customized documents or additional information.
