Complete Crusher Plant

Complete Crusher Plant for Efficient Aggregate Production

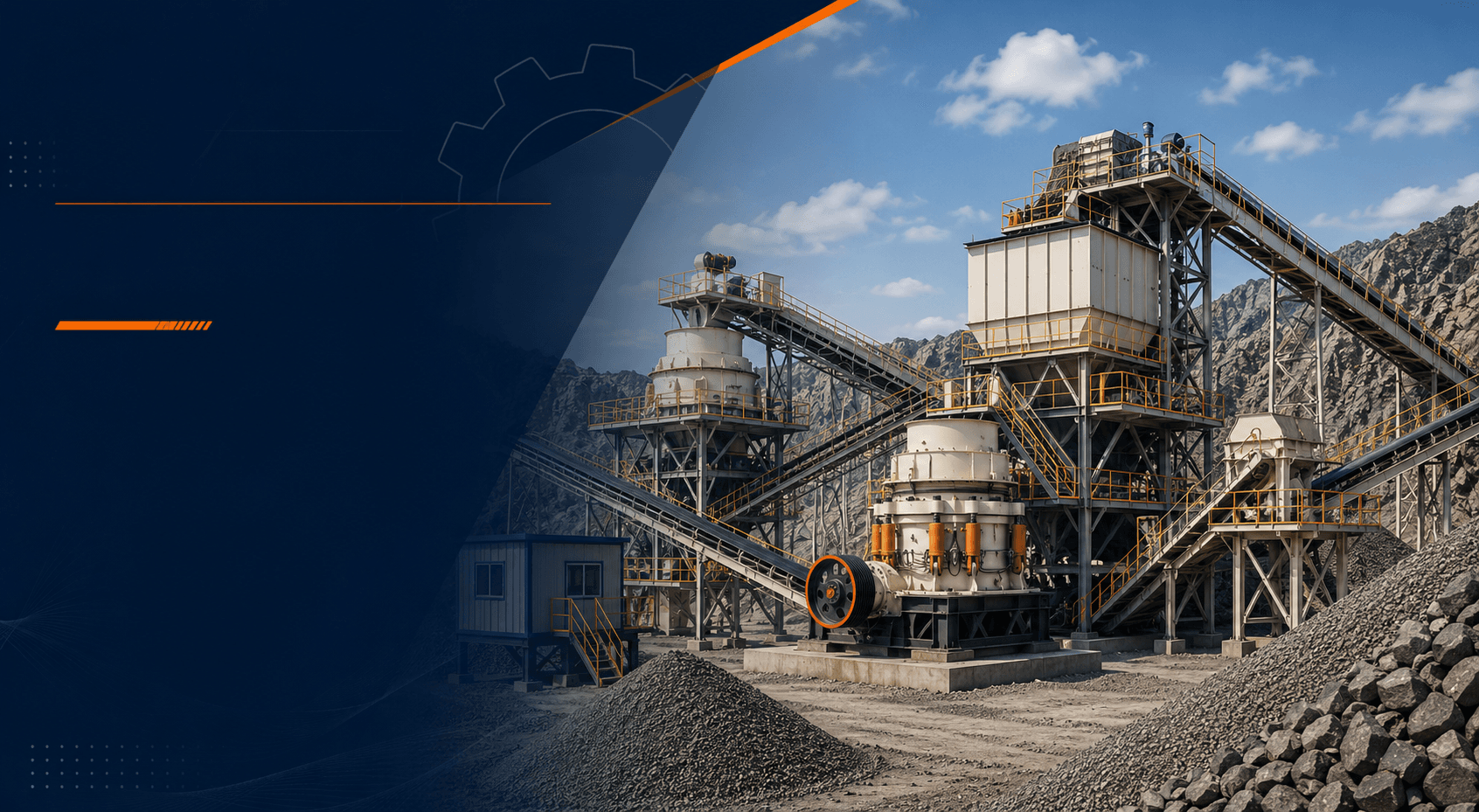

A complete crusher plant is an integrated crushing and screening system designed to process raw rocks, stones and other suitable materials into different sizes of aggregates. It combines feeding, primary crushing, secondary or tertiary crushing, screening and conveying equipment into one coordinated production system.

A properly designed crushing plant helps maintain a continuous flow of material from the feed point to the final product stockpiles. Depending on the application, the plant can be configured with jaw crushers, cone crushers, VSI crushers, vibrating screens, feeders and conveyor systems to meet specific production and output requirements.

Why Choose a Complete Crusher Plant from Pithal Machines

Choosing the right complete crushing system is important for maintaining production efficiency, consistent product sizing and reliable plant operation. A complete plant from Pithal Machines can be configured according to the material characteristics, required capacity, feed size and final aggregate specifications.

Instead of selecting individual machines without considering how they will work together, the complete plant is designed as an integrated system. This helps ensure that the feeder, crushers, screens and conveyors are properly matched to maintain a balanced material flow throughout the crushing process.

Stone Crusher Plant Process

The stone crusher plant process begins with feeding raw material into a hopper or feeding system. A vibrating feeder controls the material flow and supplies the raw material to the primary crusher for initial size reduction.

Primary Crushing for Large Feed Material

The primary crushing stage is responsible for reducing large rocks into smaller pieces that can be processed by the following stages. Jaw crushers are commonly used for this purpose because they can handle large feed sizes and are suitable for a wide range of hard and abrasive materials.

The performance of the primary crusher depends on factors such as feed size, material hardness, abrasiveness, crusher settings and required production capacity. Selecting the appropriate jaw crusher is therefore an important part of complete plant design.

Secondary Crushing for Controlled Reduction

After primary crushing, the material can enter a secondary crusher for further size reduction. Cone crushers are commonly used in applications where controlled crushing and consistent aggregate production are required.

The secondary crushing stage reduces the material further before it reaches the screening section. The correct crusher configuration depends on the type of rock, required output sizes, production target and overall plant design.

Tertiary Crushing and Material Shaping

Some crushing applications require an additional tertiary stage to achieve the desired product size or particle shape. A VSI crusher can be incorporated into the plant where finer material or manufactured sand is required.

The tertiary stage can also be used where improved aggregate shape is important for the final application. The requirement for tertiary crushing depends on the material being processed and the specifications of the finished product.

Vibrating Screen for Accurate Product Separation

Vibrating screens are an important part of a complete crushing plant because they separate crushed material according to size. Different screen decks can be used to produce multiple aggregate sizes from the same crushing circuit.

Material that is larger than the required size can be returned to the crusher for further processing, while correctly sized material is directed to the appropriate stockpile. Proper screen selection helps maintain efficient plant operation and consistent product classification.

Conveyor System for Continuous Material Flow

Conveyor systems connect the different stages of the crushing plant and transport material from one machine to another. They can be used between the feeder, crushers, screens and final product stockpiles.

A properly designed conveyor system helps maintain continuous material movement and reduces unnecessary material handling. Conveyor capacity, length, belt width, inclination and plant layout should be considered when designing the complete system.

Factors Affecting Crusher Plant Price

The crusher plant price depends on several factors, including production capacity, equipment configuration, number of crushing stages, crusher type, screen size, conveyor arrangement and automation requirements.

The characteristics of the raw material can also influence the equipment selection. Hard and abrasive rocks may require heavy-duty crushing equipment and suitable wear components, while other materials may require a different crushing arrangement.

For this reason, there is no single price applicable to every complete crushing plant. The final investment depends on the specific requirements of each project.

Stone Crusher Plant Project Cost in India

The stone crusher plant project cost in India includes more than the purchase price of crushing machines. A complete project may require expenses for site preparation, civil foundations, electrical systems, material feeding, crushing equipment, screening equipment, conveyors, installation and commissioning.

Operating requirements should also be considered during project planning. Spare parts, wear components, maintenance, power consumption and future equipment requirements can all influence the long-term cost of operating a crushing plant.

How to Select the Right Complete Crusher Plant

Selecting a complete crusher plant requires an understanding of the material and production requirements. Important factors include the type of raw material, maximum feed size, hardness, abrasiveness, moisture content, required tonnes-per-hour capacity and final product sizes.

The plant layout should also allow each machine to operate within its recommended capacity. An oversized crusher combined with an undersized screen or conveyor can create a bottleneck and reduce the efficiency of the complete system.

Complete Crusher Plant Manufacturer for Customized Solutions

A complete crusher plant manufacturer should be able to design a crushing system around the specific requirements of the project rather than simply supplying individual machines.

Pithal Machines provides crushing and screening equipment for applications in mining, quarrying, construction and aggregate production. Depending on the project requirements, the plant can incorporate jaw crushers, cone crushers, VSI crushers, vibrating screens and conveyor systems.

Crusher Plant Manufacturer in India

A reliable crusher plant manufacturer in India should understand the complete crushing process, equipment selection and material-handling requirements. Technical support and equipment compatibility are also important considerations when developing a new crushing project.

Pithal Machines offers crushing and screening equipment designed for different material-processing applications. The equipment selection can be based on factors such as feed material, production capacity, required output size and site requirements.

Complete Crushing Plant for Mining and Quarrying

Mining and quarrying operations often require reliable crushing systems capable of processing large quantities of rock and producing consistent aggregate sizes. A complete crushing plant can be configured according to the hardness, abrasiveness and feed characteristics of the material.

The combination of primary, secondary and tertiary crushing with screening allows the plant to produce different aggregate sizes from a continuous feed. The exact configuration depends on the requirements of the quarry or mining operation.

Complete Crusher Plant for Construction and Infrastructure

Construction and infrastructure projects require aggregates for applications such as roads, concrete, bridges and other development projects. A complete crushing system can process suitable rock into the required aggregate sizes for these applications.

The ability to produce multiple product sizes from one integrated plant makes complete crushing systems suitable for projects where consistent aggregate supply is required.

Importance of Proper Crusher Plant Design

A complete crusher plant should be designed as one balanced system. The feeder, crushers, screens and conveyors need to work together so that one machine does not restrict the performance of the rest of the plant.

Material characteristics, production capacity, product specifications and site conditions should therefore be evaluated before finalizing the equipment configuration. Proper planning can help improve material flow, reduce avoidable downtime and support consistent production.

Maintenance of a Complete Crusher Plant

Regular maintenance is essential for maintaining reliable crushing plant performance. Operators should monitor crusher wear components, screen condition, conveyor alignment, bearings, lubrication and material flow.

Routine inspections can help identify potential issues before they develop into major equipment problems. Correct operating practices and timely replacement of wear components can also help maintain the efficiency of the crushing system.

Get the Right Complete Crusher Plant for Your Project

Every crushing project has different requirements based on raw material, feed size, production capacity and final aggregate specifications. Selecting the right equipment configuration is therefore important for achieving reliable and efficient plant performance.

Pithal Machines provides crushing and screening equipment for mining, quarrying, construction and aggregate applications. The team can help evaluate project requirements and develop a suitable complete crushing solution using the appropriate combination of crushers, screens, feeders and conveyor systems.

Choose Pithal Machines for a complete crushing solution designed around your material, production requirements and final product specifications.
